Bamboo Rod Making: A Complete Process Overview from Raw Cane to Finished Rod

Before you cut the first strip, you should see the whole road.

Bamboo rod making is often described as a craft that takes a week to learn and a lifetime to master. That's accurate — but it obscures a practical point: the individual steps are learnable. Each one builds on the last, each produces a visible result, and the first rod you build will fish. It won't be perfect. But it will be yours, and it will catch fish, and you will understand it in a way you can't understand a rod that arrived in a tube.

This article is your overview — a map of the entire process before we go deep on each step in the articles that follow.

The Ten Steps of Bamboo Rod Making

Every split-cane fly rod — whether it's a simple 7-foot trout rod or a tournament casting blank — passes through the same ten steps. The techniques within each step can vary. The sequence does not.

Step 1: Selecting and Sourcing Tonkin Cane

It starts here. Tonkin bamboo (Arundinaria amabilis), grown in a small region of southern China, is the only species with the fiber density and power-fiber distribution suited to rod making. Not every culm is usable — the selection criteria include node spacing, wall thickness, power fiber density in the outer layer, and the absence of cracks or insect damage.

We cover this in full in Tonkin Cane Selection & Prep.

Step 2: Heat Treating and Straightening

Raw culms arrive curved and imperfectly straight. Heat treating serves two purposes: it drives residual moisture from the cane, hardening the power fibers, and it allows you to correct curves and node offsets by heating a section until it becomes momentarily flexible, then holding it straight as it cools.

This step is often skipped by beginners working from guides that gloss over it. Don't skip it. A straight culm produces a straight rod. The alternative costs you hours of correction later.

We cover this in Bamboo Heat Treating & Straightening.

Step 3: Splitting the Culm into Strips

A bamboo fly rod blank is hexagonal — six triangular strips of cane, each planed to precise dimensions, glued together with their power fibers facing outward. The first step toward those six strips is splitting the culm into rough sections, then working those sections down toward triangular cross-sections.

Node filing and heat-pressing nodes flat is part of this stage. Nodes are the denser ring structures along the culm. They don't plane evenly, so they need to be filed and heat-set before the precision planing begins.

Full details in Splitting & Planing Bamboo Rods.

Step 4: Planing to Final Taper

This is the central technical challenge of rod making. Each of the six strips must be planed to precise triangular dimensions that vary continuously from butt to tip — the taper dimensions that determine the rod's action. You'll use a planing form: a long, adjustable metal tool set to the exact target dimensions for each station along the rod.

Tolerances here are measured in thousandths of an inch. Being off by 0.005" across all six strips produces a rod that's noticeably softer than intended. This is where the craft lives, and it's where the most time goes.

Also covered in Splitting & Planing Bamboo Rods.

Step 5: Gluing and Binding

Six planed strips, laid up with power fibers facing out, glued together into a hexagonal section. The adhesive choices range from traditional hide glue (reversible, forgiving, historically accurate) to modern urea-formaldehyde or epoxy formulations (stronger bond, less room for error). The strips are bound with thread or string to maintain even pressure during cure.

Covered in Gluing & Binding Bamboo Rods.

Step 6: Ferrule Fitting

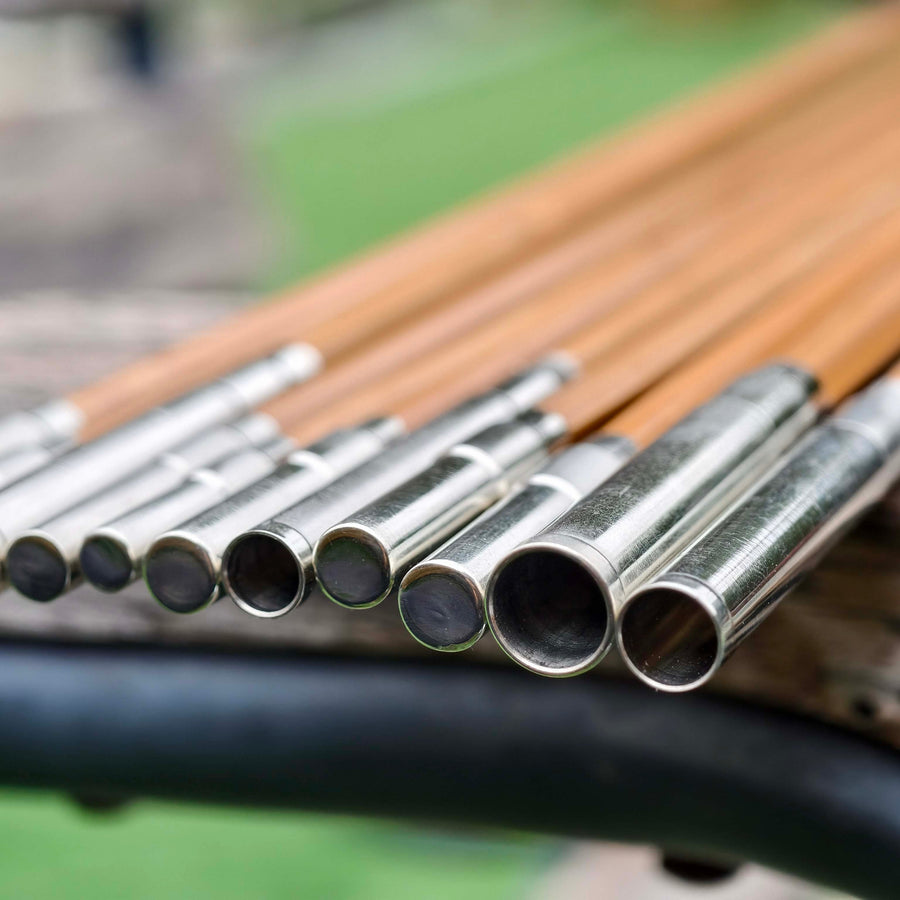

Ferrules are the nickel-silver joints that allow the rod to break down into sections for transport. Fitting them requires turning the rod sections to exact dimensions so that male and female ferrules mate with no play and no binding. A poorly fitted ferrule degrades the entire rod's casting performance.

This is one step where precision measuring tools — micrometers, not calipers — are non-negotiable. Covered in Ferrule Fitting Guide.

Step 7: Final Shaping and Sanding

After gluing, the rod section may have minor curves, glue ridges, and rough surface texture. This step involves heat-straightening any residual bend, scraping, and sanding through progressively finer grits until the six-sided blank is clean, straight, and ready for finishing.

Covered in Bamboo Rod Final Shaping & Sanding.

Step 8: Handle, Grip, and Reel Seat

The cork grip and reel seat are the interface between the rod and the angler's hand. Cork is chosen by grade, shaped to the chosen profile (half wells, full wells, or cigar), and fitted to the rod with a threaded mandrel or reamed to fit. The reel seat follows, with the key decision being uplocking versus downlocking orientation.

Covered in Cork Grip & Reel Seat and Reel Seat Locking Direction.

Step 9: Guide Spacing, Wrapping, and Epoxy

Guides are positioned using a formula (we use a Bradford-derived calculation adjusted for bamboo action), then secured with silk thread wraps that are coated with rod-finishing epoxy for protection. Guide placement directly affects how the rod loads and how line exits the tip — it is not a detail.

Covered in Guide Spacing & Thread Wrapping.

Step 10: Varnish, Final Finish, and Action Testing

The blank itself receives one or more coats of spar varnish or rod-finishing varnish, protecting the cane from moisture. After full cure, the rod is assembled, tested for alignment, and cast. This is where you find out what you built — and make any final adjustments before the rod goes on the water.

Covered in Bamboo Rod Varnish & Finish Selection and Action Testing & Completion.

Tools and Workspace

You don't need a professional shop. You need a workbench, reliable lighting, and a small collection of dedicated tools.

The Non-Negotiables

Workshop Conditions

Gluing and varnishing are moisture-sensitive. A basement or garage workshop needs to stay above 60°F during cure, with humidity below 65%. Temperature swings during cure will cause bubbles in varnish and micro-gaps in glued joints that won't be visible until the rod has been fished for a season.

Realistic Time Investment

A first rod, working evenings and weekends without rushing:

Don't compress the drying stages. Varnish that hasn't cured fully will chalk within months of use. The waiting is part of the process.

What Your First Rod Will Teach You

Your first rod will have a planing error somewhere. One section will be slightly off-taper, or one strip will have a high node that you didn't press quite flat. You'll likely know where it is before the rod is finished.

That's fine. The rod will still fish. The error will teach you more than a perfect result would, because you'll know exactly what produced it and how to prevent it next time.

Build with Tonkin cane that's been properly dried and heat-treated. Plane to a taper that's been documented and validated — the classic tapers developed by Garrison, Payne, Leonard, and others are proven designs that fish well and are forgiving of small variations. Don't design your own taper on your first rod.

And fish the rod. There's no substitute for casting feedback. The rod will tell you what it needs.

The Series Map

Start with the cane. The rod begins there.
