The Art and Science of Bamboo Fly Rod Making: A Comprehensive Technical Guide
An evidence-based overview of split-cane construction, taper measurements, adhesive selection and component fitting, without unsupported universal process settings.
Split-cane rodmaking combines material selection, measured shaping and careful assembly. Its precision comes from a documented method and repeated checks on the actual parts, not from a universal set of temperatures or tolerances copied between unrelated processes.
The material and the section
Tonkin cane is commonly known by the older botanical name Arundinaria amabilis; Kew accepts Pseudosasa amabilis. It should not be confused with moso bamboo, Phyllostachys edulis. Historical rods also used other cane, including Calcutta bamboo.

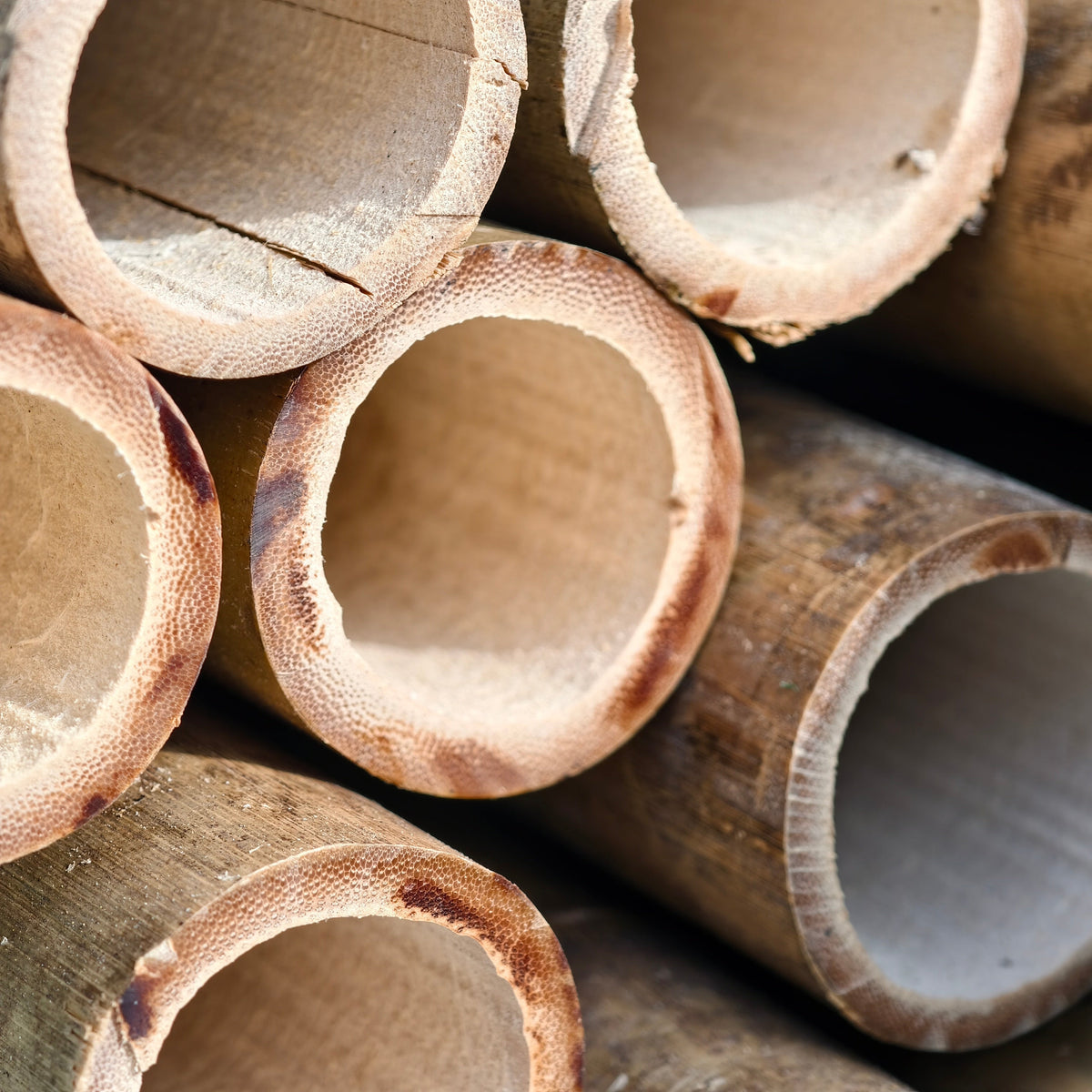

In a conventional six-strip section, triangular strips are assembled with dense outer fibers toward the outside. A natural culm is hollow, but this does not mean that a finished six-strip rod section is hollow. Hollow-built sections require an additional, deliberate construction method.
Measure the taper, not an imagined universal formula
A taper record describes dimensions at defined stations. Confirm whether the values describe a finished section across flats, a single strip, or another convention before setting a planing form. Mixing these measurements can produce the wrong section even when every recorded number is copied accurately.
A rod’s bending response depends on its dimensions, material, ferrules, construction and load. Terms such as progressive, full-flex and parabolic describe behavior; they are not interchangeable equations or guarantees that all rods by a maker share one action.
Use a documented sequence
Prepare cane and nodes, straighten as required, rough-plane, establish the final taper, dry-fit the strips, glue and bind, and inspect the cured section. Makers differ in the timing of heat treatment and straightening. Follow a coherent method suited to the chosen materials.
Garrison’s work brought engineering analysis to rod design. A Master’s Guide to Building a Bamboo Fly Rod was published in 1977 with Hoagy B. Carmichael. It should be consulted directly rather than used as authority for uncited modern tools or numerical claims.
Match the adhesive and finish to the job
Adhesives and coatings have different mixing, working-time, cure and environmental requirements. Follow the product instructions for the actual formulation. A blanket heat schedule or bonding pressure can damage a build or produce an inadequate joint.
Remove glue residue without rounding the blank or unnecessarily cutting outer fibers. Resolve abnormal joints and alignment before installing or loading the completed rod.
Fit the complete rod
Use actual measurements for ferrules, grip, reel seat and guides. Confirm which work is already included if starting with a purchased blank. Guide placement should come from an appropriate reference and be checked on the assembly.
Care for the result
Dry the rod before storing it, protect the fine tips and keep fitted ferrules clean. Do not prescribe abrasive fitting work, solvent treatments or internal oils as routine care. A loose ferrule, crack or separating strip warrants assessment before further use.
Sources and further reading
- Kew: Pseudosasa amabilis
- American Museum of Fly Fishing: Everett Garrison
- Publisher: Handcrafting Bamboo Fly Rods
